Cutter Suction Dredger With Advanced Technology, Stable And Reliable Quality And Good After-Sales Service
1. About Leader Dredger Cutter Suction Dredger:
1. Cutter suction dredge has the characteristics of strong geographic environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low cost, and heavy workload. It is used for sand mining in sand fields and river channels. Ideal choice.
2. It can also be used for salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development.
3. The dredged sand after sieving and separation is pure and free of impurities, making it an ideal choice for the construction industry.
4. The cutter suction dredger can be installed together with the beneficiation equipment to extract gold, iron ore and other minerals. It has the characteristics of high automation, high extraction precision and large processing capacity.
2. Why Choose Leader Dredger Cutter Suction Dredger:
1. Simple and fast assembly and disassembly
2. Equipped with parts and float tubes
3. Can be transported by road, rail or sea
4. Reliable hydraulic system
5. Fresh water engine cooling system
6. Low fuel consumption
7. Easy to operate
8. Good after-sales service
9. Leader Dredger has signed long-term after-sales service agreements with customers.
10. We provide reasonable and practical designs according to customer requirements.
11. We send engineers to assemble and test the machine within the time limit specified in the contract.
12. During the warranty period, if quality problems occur, we will provide free repairs.
13. We provide customers with free operation and maintenance training.
14. We provide high-quality accessories at low prices.
15. We will provide customers with quality services for a long time.
3. Leader Dredger LD3700 Dredger Ship Technical Specifications
A . Dredging Features
| Standard dredging depth(m) | 14m |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 500/450mm |
B . Principal characteristics
| Overall length(m) | 35m |
| Breadth(m) | 7m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 1800m |
| Total dry weight approx(MT) | 130MT |
| Ladder length | 19m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT C32 746kw |
| Auxilary engine | CAT C9.3 218KW |
| Total fuel consumption | ≤154kg/hr |
| Extra emergency generator set | 24kw(32Hp)
|
4. Leader Dredger LD3700 Sand Cutter Suction Dredger Service:
Sign long-term after-sales service agreements with customers;
1. Make a reasonable and practical design according to the customer's project needs and requirements;
2. Engineers will be sent to install, test and debug the new machine;
3. Operation service and maintenance guide (new operator training);
4. Troubleshooting and diagnosis;
5. Replacement suggestions and spare parts at competitive prices;
6. Provide lifetime after-sales service for all customers.
5. Cutter Suction Dredger Desgin
| 1. Hydraulic pumps drive cutter, winches spud rams |
| 2. Main engine drives pump through gearbox |
| 3. Pump inside engineroom |
| 4. Design of high production long distance and reliability, easy control, simple maintenance |
| 5. Australian technology pump |
| 6. Famous European-brand electric system and hydraulic system |
| 7. Engine room big and cool, and easy to maintain |
| 8. Dredge can be equipped with several options such as |
| Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System |
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
7.Leader Dredger Cutter Suction Dredger Customer

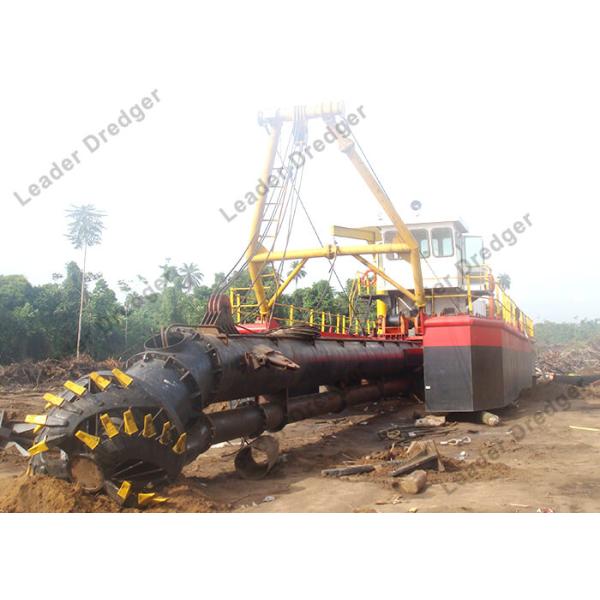

8. Cutter Suction Dredger Picture
